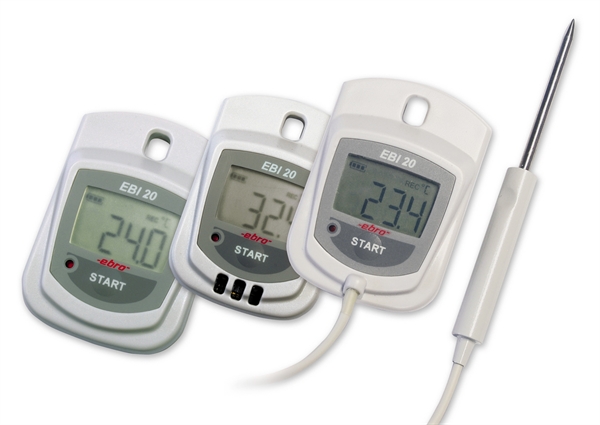

EBRO EBI-20TF Temperature Data Logger with External Probe

Overview:

With a memory capacity of 40,000 measurements the easy to use EBI 20 data loggers are suitable for the continuous documentation and monitoring of temperature. All EBI 20 data loggers are delivered with a factory calibration certificate and a user replaceable battery. The data loggers are particularly attractive because of their excellent price-performance ratio.

Highlight:

  • Excellent price/performance ratio
  • Automatic recording of temperature data
  • No network connection required
  • Programming and evaluation with PC
  • LED alarm
  • Min/max values on display
Temperature range

-30° to 100°C

Temperature accuracy

±0.5°C (+50°C to 100°C)
±1°C for the remaining measurement range

Temperature resolution

0.1°C

Memory

8,000 measurements

Sensor

NTC, 55mm, Ø3mm, pointed

Cable

0.8m Length silicone

Sampling Rate

1 min to 24hrs

Operating temperature range

-30° to 70°C

Battery

Lithium 3.6V

Dimensions

69 x 48 x 22mm

weight

approx. 45g

Environmental rating

IP 67

Certificate

Factory calibration certificate

Interface

EBI 20-IF for connection logger to PC (Accessories)

Software

Winlog.basic Software

Part Number

1601-0010

EBRO EBI20 Series Brochure

Download
