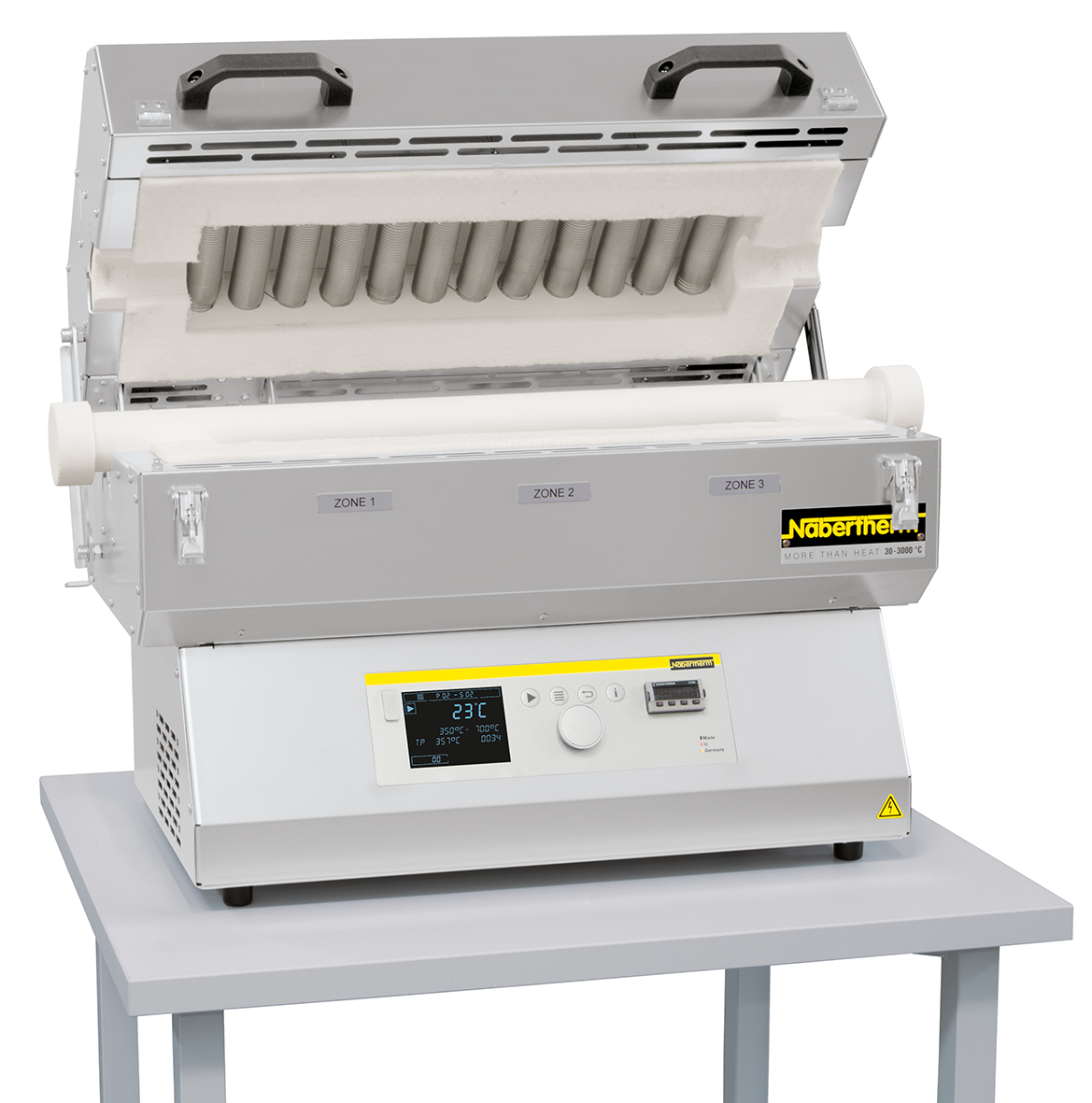

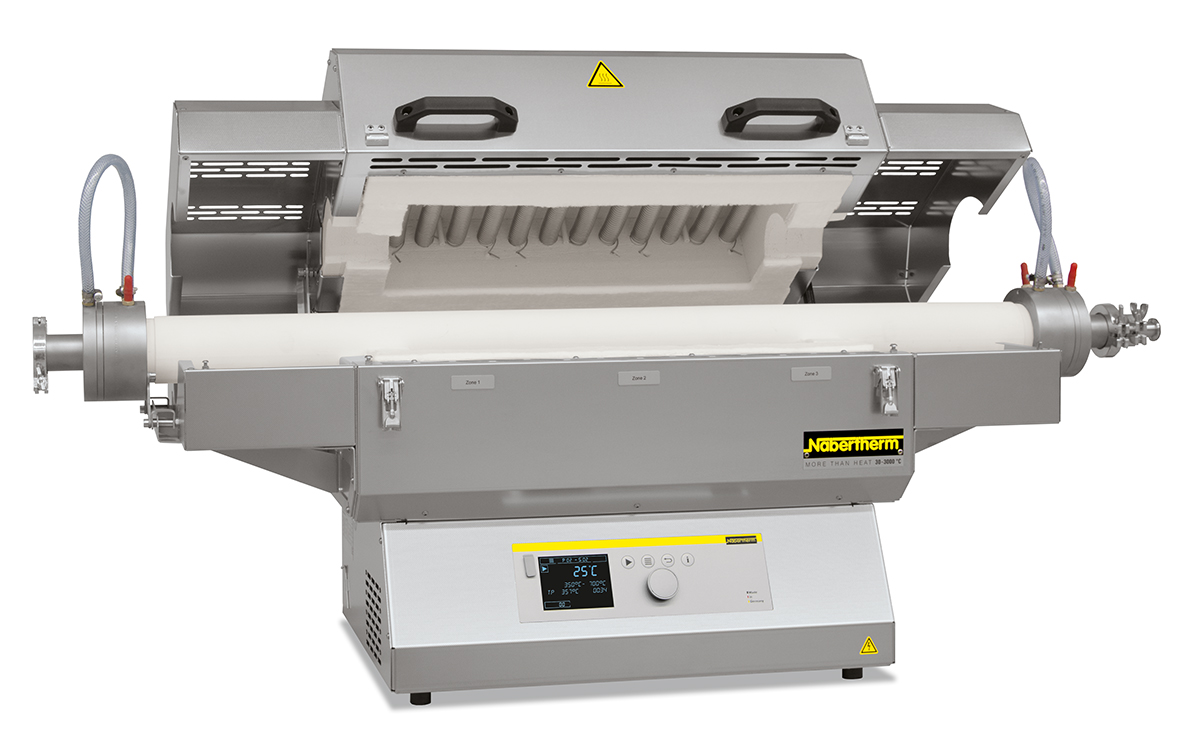

Nabertherm Split-Type Tube Furnace, Horizontal, Gas Atmosphere or Vacuum, RSH series, 1100-1300°C

These tube furnaces can be used for horizontal (RSH) or vertical (RSV) operation. The split-type design makes it easy to change the working tube. It allows for a comfortable exchange of various working tubes (e.g. working tubes made of different materials).

Using the wide range of accessories these professional tube furnaces can be optimally tailored to your process. By upgrading the furnaces with different gas supply systems the operation in a protective gas atmosphere, under vacuum or under flammable protective or reactive gases is possible. Besides convenient standard controllers for process control modern PLC control systems are also available.

• Tmax 1100 °C or 1300 °C
• Dual shell housing made of sheets of textured stainless steel
• Only fiber materials are used which are not classified as carcinogenic according to TRGS 905, class 1 or 2
• Tmax 1100 °C: Type N thermocouple
• Tmax 1300 °C: Type S thermocouple
• Frame for vertical operation (RSV)
• Split-type design for simple insertion of the working tube
• Working tube made of material C 530 incl. fiber plugs for operation under air in scope of delivery
• Heating elements on support tubes provide for free radiation
• RSV: switchgear and control unit separate from furnace in own wall or standing cabinet
• RSH: switchgear and control unit integrated in furnace housing
• Defined application within the constraints of the operating instructions
• NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive

Additional equipment

• Charge control with temperature measurement in the working tube and in the furnace chamber outside the tube
• Display of inner tube temperature with additional thermocouple
• Different gas supply systems for non-flammable or flammable protective or reactive gases and vacuum operation
• Three-zone control for optimization of temperature uniformity
• Cooling systems for accelerated cooling of the working tube and charge
• Check valve at gas outlet avoids intrusion of false air
• Base frame with integrated switchgear and controller
• Process control and documentation via VCD software package or Nabertherm Control Center (NCC) for monitoring, documentation and control
