| Air Convection | Forced |
|---|---|
| Chamber Capacity [l] | 312 Liters |
| Working Capacity [l] | 255 Liters |
| Display | Smart, 4,3" full colour touch screen |
| Temperature Range [°C] | 0…+15°C |
| Temperature Resolution every … [°C] | 0.1 °C |
| Temperature Fluctuation at 4°C [+/-°C] | 0.4 °C |
| Temperature Variation at 4 °C [+/-°C] | 0.9 °C |
| Interior Material | C (Comfort) Model : Smart stainless steel to DIN 1.4016 |
| Exterior Housing Material | C (Comfort) Model : Powder coated sheet |

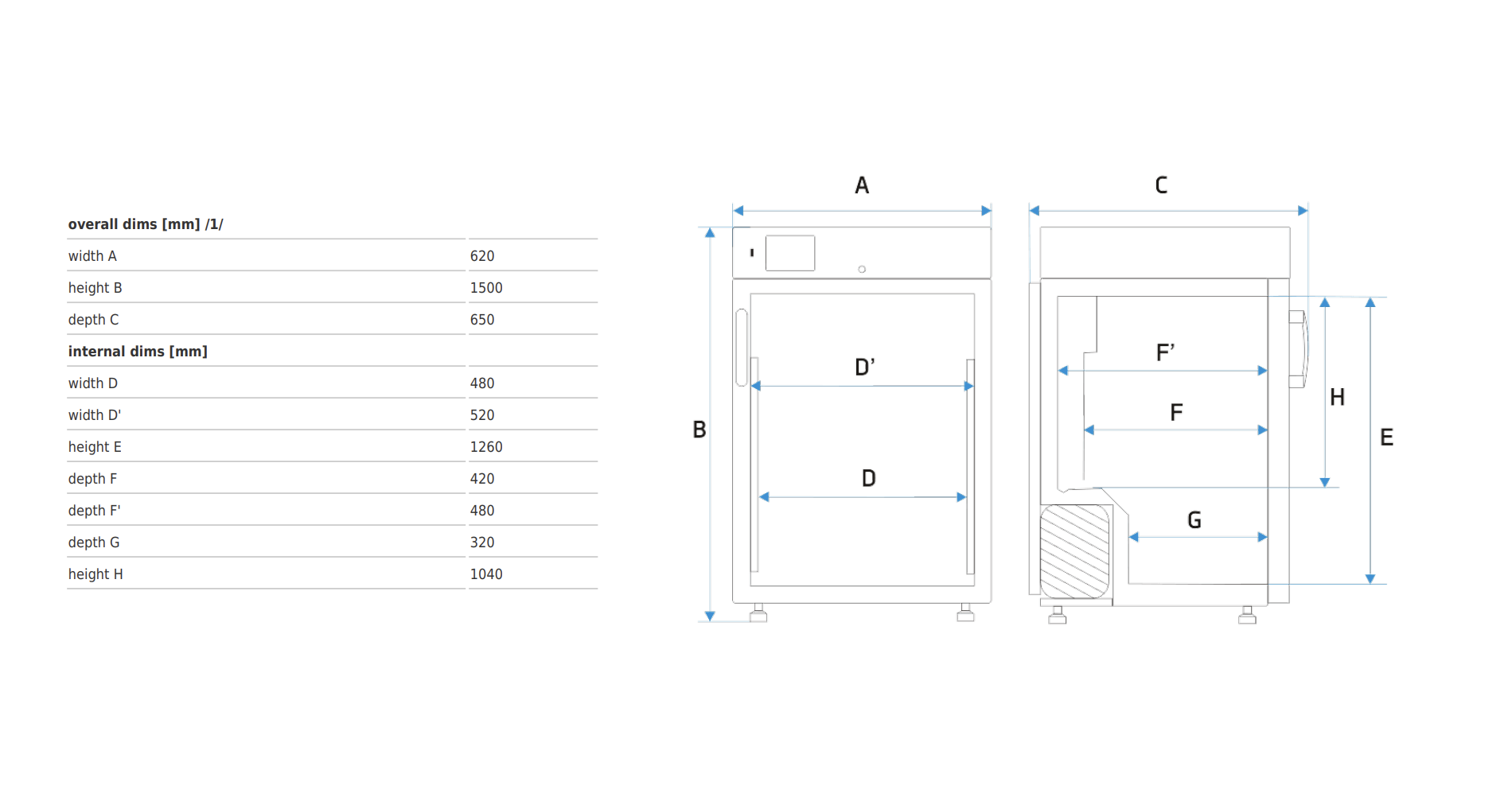

| Overall Dims [mm] | 620 L x 650 D x 1500 H |
| Internal Dims [mm] | 520 L x 480 D x 1260 H |
| Shelves (standard | max) | 4/7 |
| Weight [kg] | 98 kg |
| Power Supply | 230-240V 50/60Hz |
| Nominal Power (W) | 350 |
| Door Type | Solide Door |
| Compliance with ATEX directive | chamber in explosion-protected design ATEX II 3/- G Ex h IIC T6 Gc/- |
| Refrigerant | R1234ze / GWP=7 |
Laboratory Refrigerator CHL 5 ATEX
Features
- temperature range 0…+15°C
- chamber volume 312 liters
- working capacity 255 liters
- quality control protocol (in + 4°C)
- instruction manual in English and menu in various languages
- open door alarm
- LAN port and USB port
- door lock
- stainless steel wire shelves (INOX)
- full external doors
- automatic defrosting function (PLUS)
- chamber in explosion-protected design ATEX II 3/- G Ex h IIC T6 Gc/- (according to ATEX Directive 2014/34/EU)
- LabDesk software for downloading data to computer (optional)
- available models: C (Comfort) / P (Premium with Acid Proof stainless steel (to DIN 1.4301) interior).
Smart Controller (option to upgrade to Smart Pro Controller)
