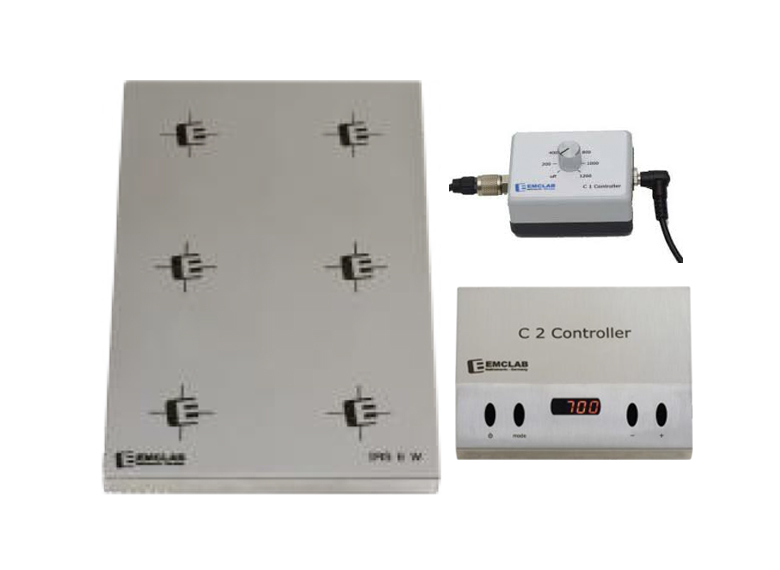

Ultra flat, wear-free magnetic stirrer with 6 stirring positions up to 3,000 ml stirring volume, suitable for 6 x 1000 ml Erlenmayer flasks. Price-optimized magnetic stirrer with 6 stirring positions, 100% maintenance-free and wear-free by inductive EMCLAB-Magnetic-Drive concept for powerful mixing of solutions, speed range depends on controller, 100% synchronized speeds, jerk-free stirring even at low speeds. Clear digital display for stirrer speed setting with C2 contoller, SoftStart procedure for reliable catching/centering and safe acceleration of the stirring bar. Automatic memory function to save the last settings, outstanding long-life cycle of the hermetically sealed drive system, resistant stainless steel housing for easy and fast cleaning. Also available with C 1 controller
| MODEL | IMS 6 W |
| STIRRING POINTS | 6 |
| STIRRING VOLUME | 1 – 3,000 ml |
| STIRRING POINT DISTANCE | 130 mm |
| SPEED RANGE (rpm) | Depend on controller |
| STIRRING POWER | 40 W |
| DIMENSIONS (W x D x H) | 245 x 375 x 38 mm |
| HOUSING MATERIALS | Stainless Steel |
| OPERATION CONDITIONS [°C/ %H] | -10°C up to +50°C in air/ up to +50°C in water |
| POWER | 48 VDC |
| PROTECTION CATEGORY | IP 68 |
| WEIGHT (gross) | 8.9 kg |
*Compatible with controllers C1, C2,
| MODEL |
C 1 Controller |

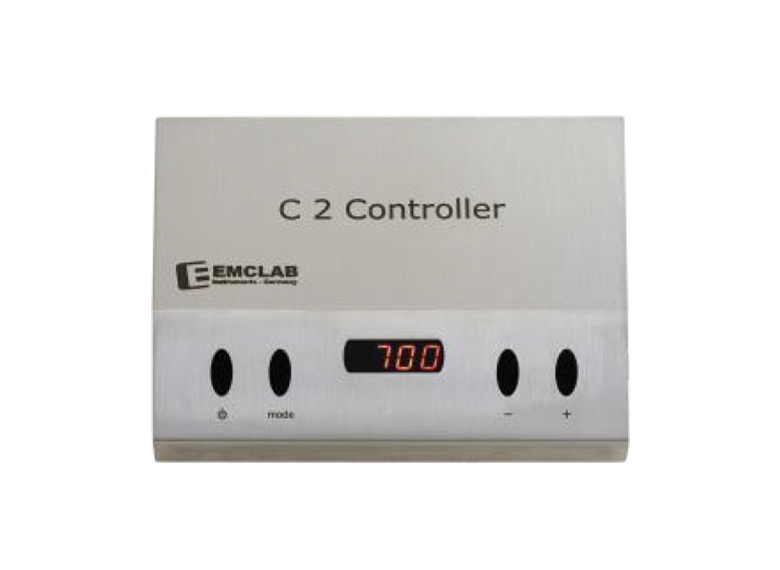

C 2 Controller |
| STIRRING POINTS |
N/A |
Only for 2/4 IMS 1 + plug for 4 |
| SPEED RANGE (rpm) |
120 – 1,200 |
100 – 1,600 |
| STIRRING POWER |
10 W |
20 W |
| DIMENSIONS (W x D x H) |
65 x 50 x 45 mm |
200 x 155 x 38 mm |
| HOUSING MATERIALS |
Plastic |
Stainless Steel |
| OPERATION CONDITIONS [°C/ %H] |
0 +40° C |
|
| POWER |
100-240 V/ 50-60Hz |
|
| PROTECTION CATEGORY |
IP 20 |
|
| WEIGHT (gross) |
0.5 kg |
1.4 kg |
