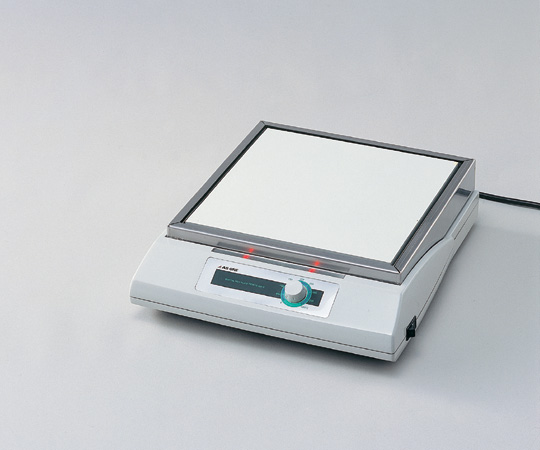

Hot Plate (Analog Type)

SKU: NAK-1K/NAK-2K
Order No Model No Max Temperature(°C) Plate Size(mm)
1-4600-83 NAK-1K 350 170×170
1-4600-82 NAK-2K 350 250×250

NAK-1K

Order No: 1-4600-83
Specifications
Highest temperature (℃): 350
Plate size (mm): 170 x 170
Temperature settings range: Room temperature +10 – 350℃
Temperature settings: Analog scale method (scale width 50℃)
Temperature distribution width: 4℃ (*temperature distribution width is indoor environment 25℃ (no wind, no load, using internal sensor), Reference value when setting to 200℃. )
Temperature control system: Microcomputer type proportional control system
Internal temperature sensor: K class thermocouple
Safety device: Abnormal heating prevention device (thermostat), overcurrent
Heater capacity: 680W
Plate material: Aluminum (ceramic coating)
Size: 240 x 280 x 101mm
Power supply: 220V±10%
Power cord length: Approx 2m
Country of origin: Japan
Control Panel: English
Plug: Type F
RoHS3 (EU)2015/863 Certificates can be issued [About RoHS]
Package size：300×370×155 mm 4.5 kg [About Package size]
NAK-2K

Order No: 1-4600-82
Specifications
Highest temperature (℃): 350
Plate size (mm): 250 x 250
Temperature settings range: Room temperature +10 – 350℃
Temperature settings: Analog scale method (scale width 50℃)
Temperature distribution width: 4℃ (*temperature distribution width is indoor environment 25℃ (no wind, no load, using internal sensor), Reference value when setting to 200℃. )
Temperature control system: Microcomputer type proportional control system
Internal temperature sensor: K class thermocouple
Safety device: Abnormal heating prevention device (thermostat), overcurrent
Heater capacity: 1000W
Plate material: Aluminum (ceramic coating)
Size: 320 x 360 x 101mm
Power supply: 220V±10%
Power cord length: Approx 2m
Country of origin: Japan
Control Panel: English
Plug: Type F
RoHS3 (EU)2015/863 Certificates can be issued [About RoHS]
Package size：425×425×210 mm [About Package size]
