External dimensions (L x D x H) | 1298 mm x 750 mm x 1332 – 1518 mm |
---|---|
Internal dimensions (L x D x H) | 1172 mm x 648 – 653 mm x 1039 mm |
SMART TECHNOLOGY | Simple, intuitive communication by light shows the status of the workstation |
FILTRATION TYPE | High Efficiency Particulate Filter HEPA H14, filters guarantee 99.995% filteration efficiency for particles larger than 0.1 μm. Air quality in the enclosure complies with EN ISO 14644-1 (Class 5) |
Air Volume Process | 660 m3/hr – 3 filter modules |
SENSOR | Build in air flow anemometer |
ERGONOMIC DESIGN | Slanted design for comfortable and safe working position |
BACTERICIDAL UV LAMPS | 15 W Wavelength 254 nm |
INTERNAL LIGHTING | Compact tubular fluorescent lighting – 800 Lux- IP 67 |
ENERGY PORTS | Located on the enclosure side panels, allow the passage of power cables/fluid pipes in the enclosure without interfering the work flow |
WORK SURFACE | High chemical and mechanical resistance 304 L Stainless Steel Worktop. Rounded corners to facilitate cleaning operations. Built in spill tray |
MOLECULAR FILTER | Option to add a layer of carbon filter for adsorption of ambient air VOCs |
Mobile Stand | Stand with wheels |

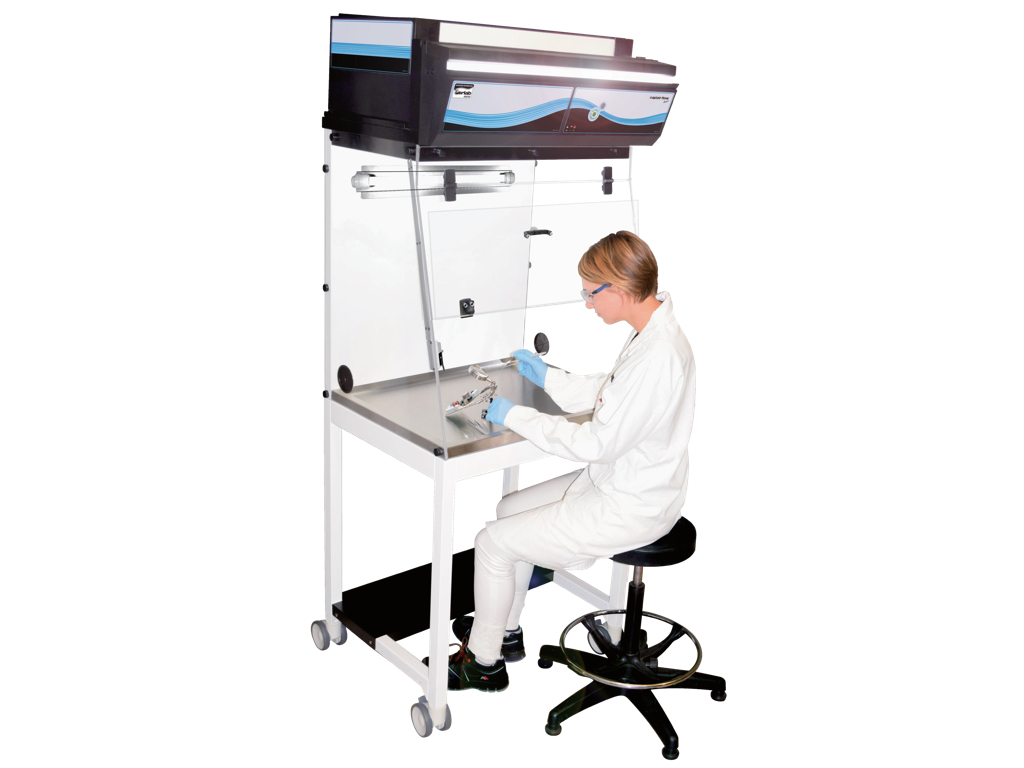

Erlab Captair Flow 483 Laminar Flow Cabinet

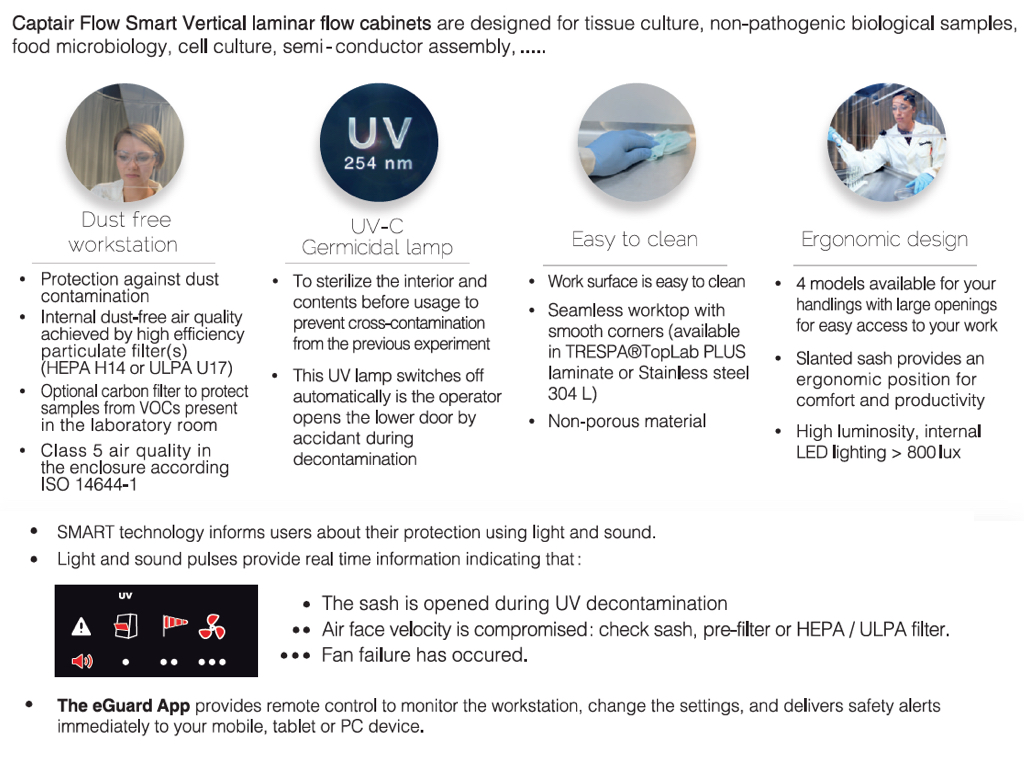

Captair Flow Smart 483, a 1298 mm/ 4.2 ft. length vertical flow laminar flow cabinet providing an ultra-clean, dust free enclosure to handle various applications from tissue culture, non-pathogenic biological samples, food microbiology, cell culture, to semi-conductor assembly.
Ergonomic Design
Slanted sash provides an comfortable working position and productivity
UV-C Germicidal Lamp
To sterilise the interior and contents before usage to prevent cross-contamination from the previous experiment
Dust Free Workstation
Class 5 air quality in the enclosure according to ISO 14644-1.
Connectivity
eGuard Software able to connect all the other workstations that have the same control system, to create a connected eco-system to monitor the safety in the laboratory seamlessly.
