Titan Ducted Fume Cupboard

SKU: Titan

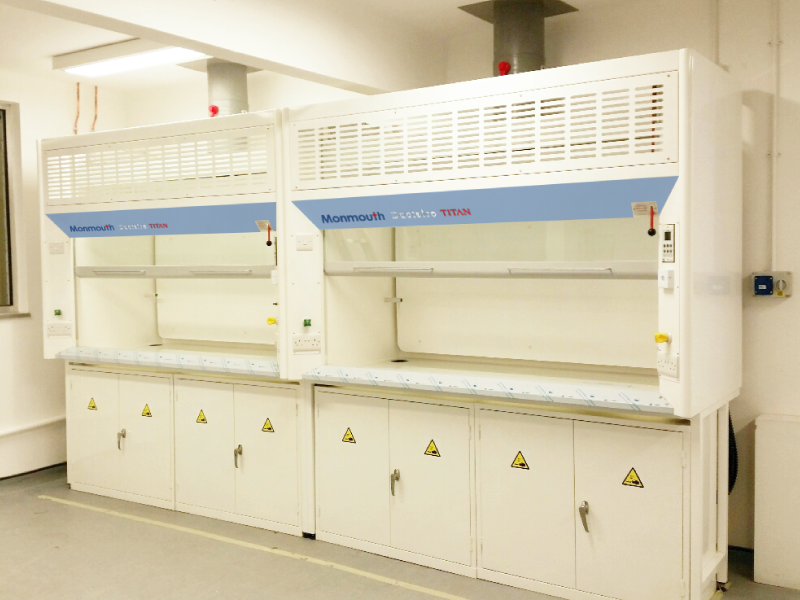

Ductaire® TITAN Ducted Fume Cupboards

The Ductaire® Titan offers total practicality and suitability for a huge variety of applications.

This unit is ideal for those requiring extraction systems for operator protection including; Laboratory, Pharmaceutical and Industrial Analytical Research as well as Industrial, Medical and Educational establishments.

Providing full compliance with COSHH regulations and BS EN 14175, the range offers a high performance aerodynamic industrial fume cupboard, fabricated in Zintec mild steel and Powder Coated in Textured Matt White (RAL9016).

  • 6mm Toughened Glass Sash, includes stops set at 500mm and 25mm.
  • Airflow is constantly monitored with velocity sensor in the chamber.
  • Alarm System – LCD Air Speed read-out, Fan stop/start and programmable relay outputs and inputs.
  • Overhead Interior 55W,LED Low Energy Lighting.
  • Removable back baffle for easy cleaning and maintenance.

A smooth radius front profile improves fume containment and aerodynamics, while the inner chamber and work surface is made from Trespa TopLab offering a strong chemical resistance. The front aerofoil, fabricated from polished 316 grade stainless steel, is designed to allow a continuous flow of air across the work base when the sash is closed.





Model / Dimension (mm)

Model 1: DT1200
External Dimension (mm) : 1200 W x 900 D x 2400 H
Working Dimension (mm) : 900 W x 720 D x 1100 H

Model 2: DT1500
External Dimension (mm) : 1500 W x 900 D x 2400 H
Working Dimension (mm) : 1200 W x 720 D x 1100 H

Model 3: DT1800
External Dimension (mm) : 1800 W x 900 D x 2400 H
Working Dimension (mm) : 1500 W x 720 D x 1100 H

Duct Size (mm)

DT1200 : 200 mm diameter
DT1500 : 250 mm diameter
DT1800 : 250 mm diameter

Air Volume (m3/sec)

DT1200 : 0.225 m3/sec
DT1500 : 0.3 m3/sec
DT1800 : 0.375 m3/sec

Weight

DT1200 : 225 kg
DT1500 : 250 kg
DT1800 : 275 kg

Air Face Velocity

0.5 m/sec at 500 mm Sash
