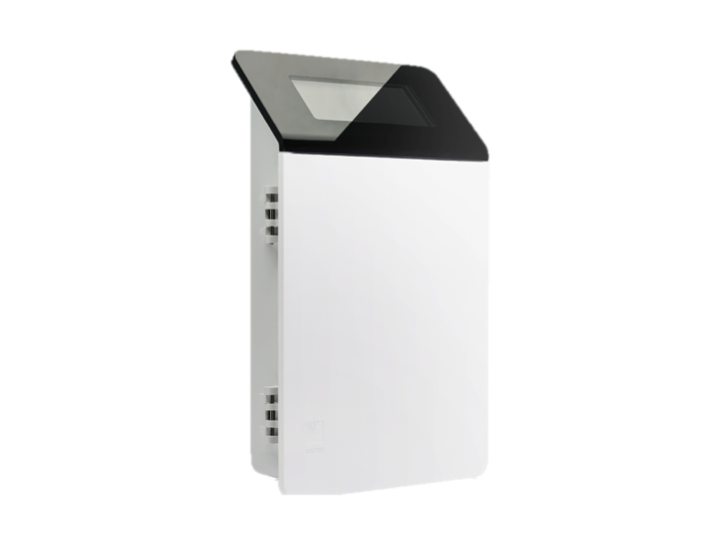

METER ZL6 Advanced Cloud Data Logger

SKU: ZL6

Max your paper output

In the research world, success or failure hinges upon using data analysis to arrive at the right conclusion. Unfortunately, most data loggers force you to spend more time collecting data than actually analyzing it. With the advent of big data, you can’t afford to be constantly fussing with complex programming, installation headaches, data downloads, data gaps, or maintenance. You need a data logger that puts near-real-time data at your fingertips—whenever, wherever, and however you want it—so you can maximize your paper output. Welcome to the new ZL6 universe.

The ZL6 breaks new barriers, so you can too

With the ZL6 data logger, there are no limits. That’s because we’ve reinvented the entire METER data logging system so the ZL6 can be your ultimate research partner. Easier, more advanced, and more robust, the ZL6 introduces cloud-based data delivery, Bluetooth® configuration, GPS, firmware-over-the-air updates, and integrated metadata, all which simplify and speed up the process of data collection, management, and sharing. It does all the legwork for you, so you can spend more time being a data visionary.

It won’t make you omniscient, but it feels close

The ZL6 uses ZENTRA Cloud to deliver near-real-time data wherever and whenever you need it. This means your grad students can spend less time downloading data in the field, and more time generating research papers. Accessing data on ZENTRA Cloud speeds up your analysis by enabling you to correlate event factors, see important trends, or discover problems almost instantly, from the comfort of your own desk. And if there’s no cell service at your site, you can still download your data via USB.

Plus, data are now incredibly easy to distribute and share. Simply enter an email, and send an invitation. Your collaborators can instantly see what you see. The ZL6 and ZENTRA Cloud allow you and others to review data the way you want, whether it’s in map format, short graphs, a list, or downloading to data-analysis packages.

Good at everything, so you don’t have to be

With the ZL6, you no longer have to be a specialist in every discipline. Using the ZL6 is like having a meteorologist, a soil physicist, and more at your disposal, allowing you more time to focus on your specialty. How? The ZL6 connects up to six different types of METER sensors, so you can monitor different parameters, such as weather, soil moisture, and soil water potential, all at the same time, giving you deeper insight. We’ve also integrated barometric pressure to eliminate the need to install extra sensors. And because everything is plug and play, you don’t have to be an expert at wiring or programming.

Uncomplicated. Almost unbreakable. And unbelievable.

We engineered the ZL6 to be extremely robust and low maintenance, so you can almost forget about your data logger completely. The ZL6’s integrated solar charging panel means there’s hardly any power maintenance required. An IP56-rated enclosure designed for shedding rain makes sure water doesn’t get in. More secure cable handling ensures sensor cables don’t get yanked out. A hidden antenna limits breakage. And we’ve added fully round clasps and hinges that won’t break.

Plus, the ZL6 requires little setup. It self-recognizes what’s plugged into each port (as long as they’re digital sensors), and the new ZENTRA app uses Bluetooth to configure digital sensors on any device, so you can bring a cell phone to the field instead of a heavy laptop. You can even configure the sensors from your office using ZENTRA Cloud. We also added GPS, so it automatically keeps track of where data are collected. And new firmware-over-the-air capability means ZENTRA Cloud updates ZL6 firmware automatically, with no effort from you.

You’ve got research. We’ve got you.

Want each of your grad students to write one more peer-reviewed paper? Now they can. With the ZL6, you and your team can focus on data. Not distractions. Together, the ZL6 and ZENTRA Cloud make it easy to connect all the critical tools you need to understand the soil-plant-atmosphere continuum, so you can analyze your data faster, and at a much deeper level. Get near-instant data anytime, anywhere, in any form that you need it, so you’ll never miss another important data insight.

Sensor input ports

6 (supports METER analog, digital, or pulse sensors)

Sensor port type

3.5-mm stereo plug connector

Logging interval

5 min to 12 h

Reporting interval

Hourly with additional charges for more frequent reporting

Data storage

8 MB (40,000 to 80,000+ records depending on configuration)

Memory type

Nonvolatile flash, full data retention with loss of power

Global position

Integrated 56-channel GPS/QZSS receiver

GPS position update

Daily (automatic) and on-demand (manual)

GPS position accuracy

±3 m, with good sky view

Timekeeping

Synchronize automatically and on-demand; GPS system, cellular, or software

Battery capacity

6 AA NiMH or alkaline batteries

NiMH battery charging

Solar energy harvesting or USB

NiMH battery life

3+ years with unobstructed view of sun

Alkaline battery life

3–12 months depending on configuration

Computer communication

Standard USB cable, USB A to micro-B

Cellular specifications

UMTS 3G 5-band cellular module with 2G fallback

Cellular coverage

T&T® and T-Mobile® in USA, 200+ global partner carriers. Cellular and data hosting service provided by METER.

Internet downloads

SSL/TLS encrypted

Enclosure

Weather-, impact-, and UV-resistant polymer

Enclosure rating

IP56, NEMA 3R

Enclosure size

14.9 cm × 25 cm × 6.3 cm (5.9 in × 9.9 in × 2.5 in)

Enclosure access

Hinged door with latches and eyelets for lock or zip tie

Operating environment

–40 to +60 °C (0%–100% relative humidity)

Compliance

Manufactured under ISO 9001:2015
EM ISO/IEC 17050:2010 (CE Mark)
