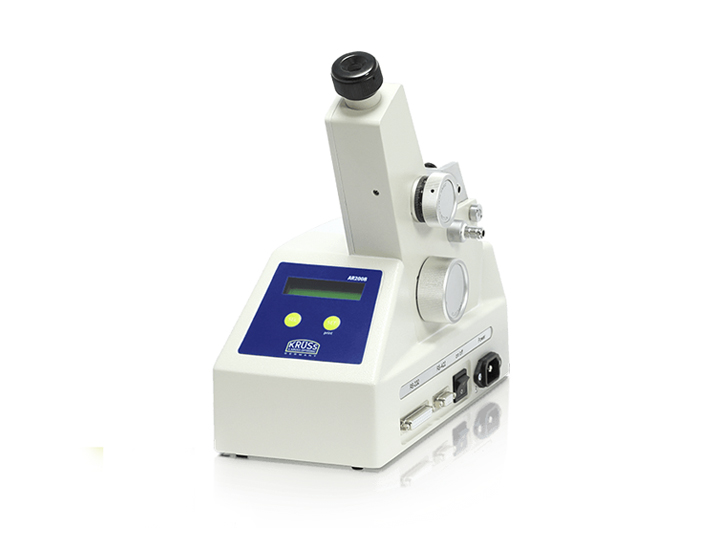

A.KRÜSS Abbe Refractometer AR2008 Digital

The AR2008 determines the refractive index between nD 1.3000–1.7200 and the sugar content in the range of 0–95 %Brix of liquid, viscous as well as solid samples. The dry substance content in % and the dispersion value nF-nC can be calculated. The output of the measurement results is performed digitally. The refractive index of the Brix value is shown on the LED display together with the temperature.

  • Measurement of liquid, viscous and solid samples, regardless of their turbidity, viscosity, transparency and absorption
  • Suitable for the measurement of foils and solids
  • Large measuring range of nD 1.3000-1.7200 and 0-95%Brix
  • Electronic evaluation of the measured data
  • Integrated thermometer
  • Automatic temperature compensation for the Brix scale can be optionally activated
  • Connections for temperature control with a circulating thermostat
  • Robust housing and easy handling

Typical applications

The Abbe refractometers have a wide range of applications in the chemical, petro- and food industry, in hospitals, pharmacies and research offices, as well as in research and teaching. The special feature is the possibility to measure not only liquid and viscous samples but also solids and foils. Main application fields are:]

  • Identity test, purity control and concentration determination of raw materials, semi-finished products and end products
  • Determination of the sugar concentration
  • Incoming and outgoing goods inspection
  • Purity control
  • Testing of food and pharmaceutical products
  • Testing of the compliance with national and international standards
  • Training
SCALES

Refractive index (nD)
concentration of sucrose [%Brix]

MEASUREMENT RANGE

nD 1.3000–1.7200
0–95 %Brix

READING ACCURACY

nD ±0.0002
±0.1 %Brix

RESOLUTION

nD 0.0001
0.1 %Brix

MEASUREMENT PRISM

Optical glass

LIGHT SOURCE

LED

WAVELENGTH

589 nm

TEMPERATURE COMPENSATION

0–90 °C

TEMPERATURE MEASUREMENT

Digital thermometer

TEMPERATURE MEASUREMENT RANGE

0–99 °C

TEMP. MEASUREMENT ACCURACY

±0.3 °C

TEMP. MEASUREMENT RESOLUTION

0.1 °C

CONTROL

Digital evaluation

SPECIAL FEATURES

Thermostat connections available

Technical Data - Abbe Refractometers

Download
