2℃~8℃ Pharmacy Refrigerator

SKU: YC Series

Features

  • We offer in various sizes from 56 L to 1505 L
  • Seven temperature probes can ensure high precision of temperature control with nearly no fluctuation and thus can improve safety.
  • Equipped with a USB export interface, which can be used for storing data from the last month to the current month automatically in PDF format.
  • With a U-disk connected, the temperature data can be stored continuously and automatically, in more than 2 years.
  • The interior lighting system with double LED lights ensures high visibility inside the cabinet.
  • A test port is available for bringing convenience to users in testing temperature inside the cabinet.
  • Large capacity for maximum storage convenience to store vaccine, drugs, reagents, and other lab / medical materials.
  • 100% CFC free design for environment friendly with no ozone-damaging chemicals.
  • Pharmacy refrigerator with aluminum plate with spraying Inner Material(Optional stainless steel liner)
  • YC-xxxL = Door with window, YC-xxxEL = Solid Door

Meling 2℃~8℃ Pharmacy refrigerator YC-series is specially designed for storing sensitive materials in pharmacies, medical offices, laboratories, clinics, or scientific institutions. It is produced in quality and durability, and meets the stringent guidelines demands for medical and laboratory grade. YC-series medical fridge provides you various sizes of interior storage with adjustable 6+1 shelves (depend on model) for high efficient capacity storage. This medical / lab refrigerator is equipped with high –precision microcomputer temperature control system and ensures the temperature range in 2℃~8℃. And it comes with 1 high-brightness digital temperature display ensuring the display precision in 0.1℃.

Leading air cooling refrigeration system

YC-series  pharmacy refrigerator is equipped with multi-duct vortex refrigeration system and finned evaporator, which can prevent the frost completely and improve the temperature uniformity to a large extent. The high-efficiency air-cooling condenser and finned evaporator of this medical grade refrigerator ensures fast refrigeration.

Intelligent audible and visible alarm system

This vaccine refrigerator comes with multiple audible and visible alarm functions, including high/low temperature alarm, power failure alarm, low battery alarm, door ajar alarm, high air temperature alarm, and communication failure alarm.

Superb technology design

The electrical heating + LOW-E design with double consideration can achieve a better anti-condensation effect for the glass door. And this pharmaceutical fridge is designed with high-quality shelves made from PVC-coated steel wire with tag card for easily cleaning. And you can have an invisible door handle, ensuring elegance of appearance.

Model

Description

YC-56L/EL

Volume of Freezer : 56 Liter
Temperature range : 2℃~8℃
External Dimension : 542 mm W x 565 mm D x 632 mm H.
Internal Dimension : 444 mm W x 440 mm D x 404 mm H
Number of Shelves : 2
Net Weight : 35 kg

YC-76L/EL

Volume of Freezer : 76 Liter
Temperature range : 2℃~8℃
External Dimension : 542 mm W x 566 mm D x 764 mm H.
Internal Dimension : 444 mm W x 440 mm D x 536 mm H
Number of Shelves : 3
Net Weight : 45 kg

YC-130L/EL

Volume of Freezer : 130 Liter
Temperature range : 2℃~8℃
External Dimension : 650 mm W x 625 mm D x 810 mm H.
Internal Dimension : 554 mm W x 510 mm D x 588 mm H
Number of Shelves : 2+1
Net Weight : 51 kg

YC-315L

Volume of Freezer : 315 Liter
Temperature range : 2℃~8℃
External Dimension : 650 mm W x 673 mm D x 1762 mm H.
Internal Dimension : 580 mm W x 533 mm D x 1122 mm H
Number of Shelves : 4+1
Net Weight : 87 kg

YC-395L/EL

Volume of Freezer : 395 Liter
Temperature range : 2℃~8℃
External Dimension : 650 mm W x 673 mm D x 1992 mm H.
Internal Dimension : 580 mm W x 533 mm D x 1352 mm H
Number of Shelves : 6+1
Net Weight : 95 kg

YC-525L

Volume of Freezer : 525 Liter
Temperature range : 2℃~8℃
External Dimension : 720 mm W x 810 mm D x 1961 mm H.
Internal Dimension : 610 mm W x 685 mm D x 1264 mm H
Number of Shelves : 6
Net Weight : 148 kg

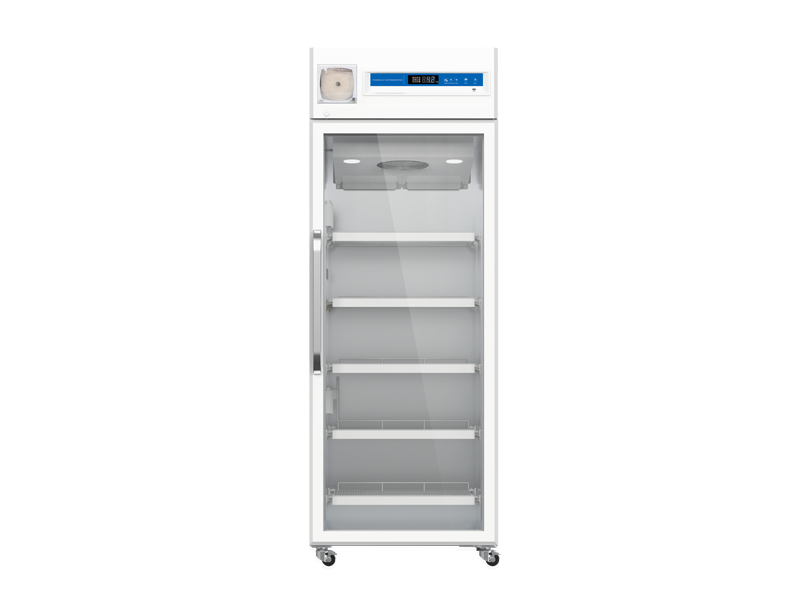

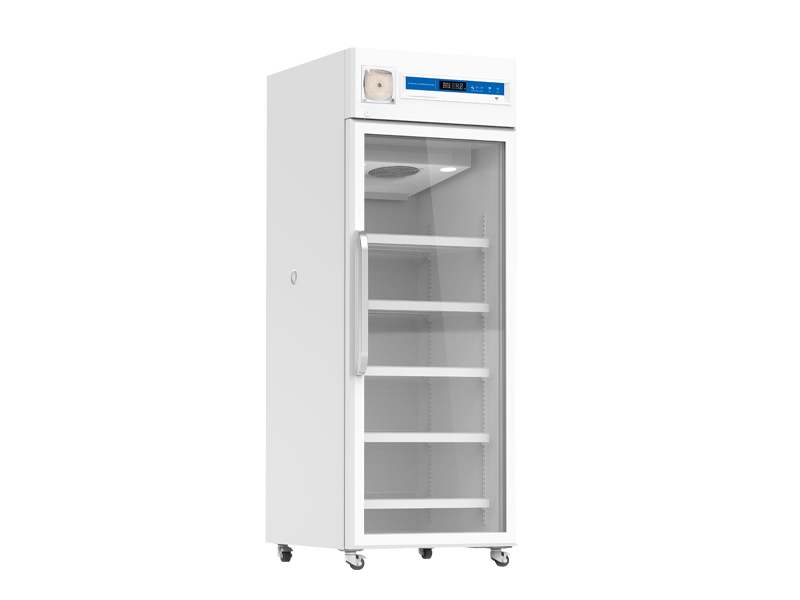

YC-650L/CL

Volume of Freezer : 650 Liter
Temperature range : 2℃~8℃
External Dimension : 715 mm W x 941 mm D x 1985 mm H.
Internal Dimension : 605 mm W x 725 mm D x 1515 mm H
Number of Shelves : 5
Net Weight : 157 kg

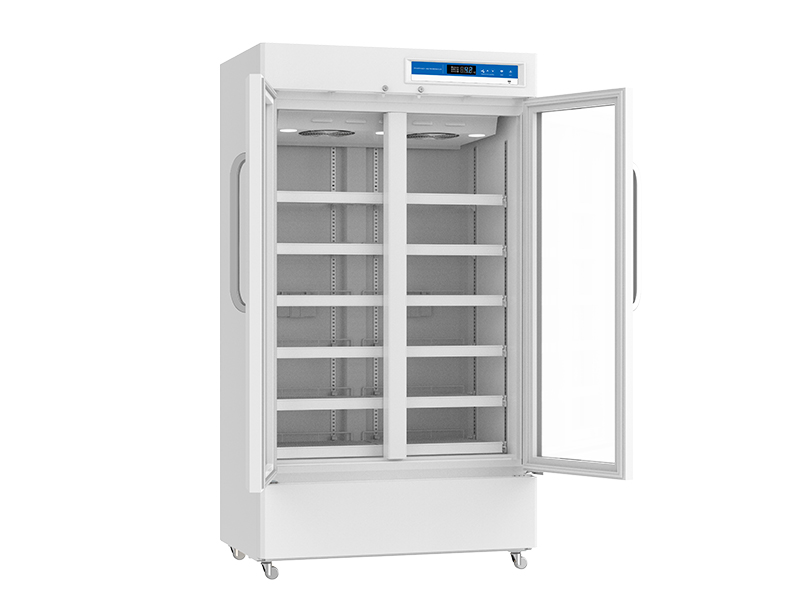

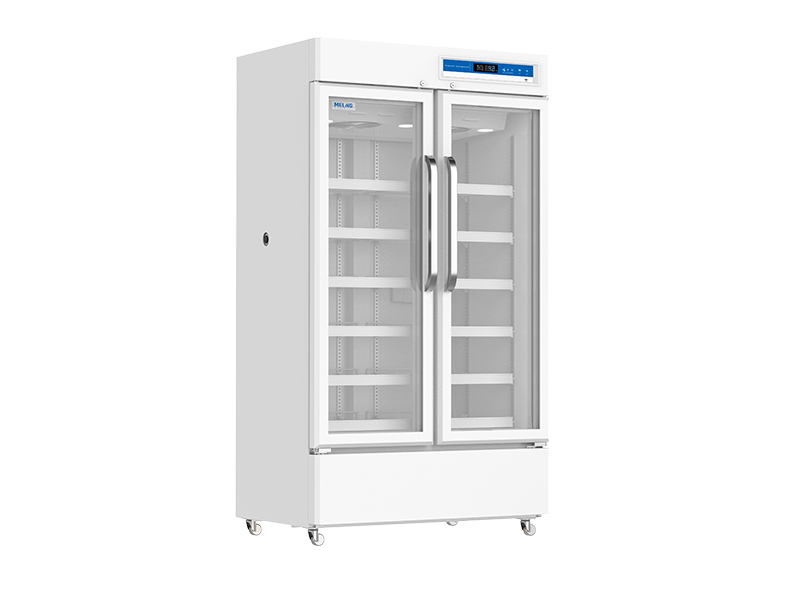

YC-725L/EL

Volume of Freezer : 725 Liter (2 Doors)
Temperature range : 2℃~8℃
External Dimension : 1093 mm W x 772 mm D x 1992 mm H.
Internal Dimension : 980 mm W x 595 mm D x 1260 mm H
Number of Shelves : 12
Net Weight : 189 kg

YC-1015L

Volume of Freezer : 1015 Liter (2 Doors)
Temperature range : 2℃~8℃
External Dimension : 1180 mm W x 900 mm D x 1990 mm H.
Internal Dimension : 1070 mm W x 670 mm D x 1515 mm H
Number of Shelves : 12
Net Weight : 223 kg

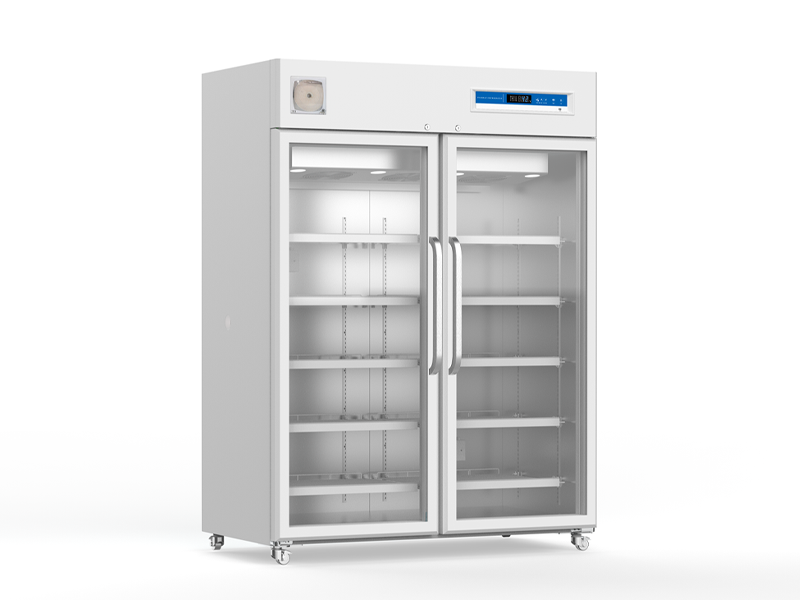

YC-1320L/CL

Volume of Freezer : 1320 Liter (2 Doors)
Temperature range : 2℃~8℃
External Dimension : 1453 mm W x 881 mm D x 1998 mm H.
Internal Dimension : 1340 mm W x 670 mm D x 1515 mm H
Number of Shelves : 10
Net Weight : 258 kg

YC-1505L

Volume of Freezer : 1505 Liter (2 Doors)
Temperature range : 2℃~8℃
External Dimension : 1798 mm W x 886 mm D x 1997 mm H.
Internal Dimension : 1685 mm W x 670 mm D x 1514 mm H
Number of Shelves : 18
Net Weight : 322 kg
